How to Build a Complete Long-Lens Setup — Tripod, Head, Plates, and Rigging

Most photographers build their support system backwards. They start with a tripod, usually whatever is on sale or fits the budget, and then spend years adding components around it, replacing parts that do not work together, and wondering why the whole setup feels inconsistent.

Building a complete long-lens setup correctly means understanding what each component does, why the order of purchases matters, and how four specific elements work together to give you a stable, repeatable, fast-to-deploy system in real shooting conditions.

This guide covers all four: tripod, head, quick-release plates, and for hybrid shooters, rigging. We also have a couple of recommendations for each component for a full, no frills setup.

Why Most Photographers Get the Order of Purchases Wrong

The most common mistake is buying the tripod last. Most photographers buy a camera, then a lens, then an inexpensive tripod as an afterthought. \

By the time they are running a 400mm or 500mm lens, the tripod is completely wrong for the job. Their tripod is too light, too flexible, and incompatible with the head they actually need.

We've all been there. An accessories package that comes with a plastic-fantastic, entry-level tripod, some lens filters, cleaning cloth, and other unnecessary add-ons. It's a great deal at first glance but as you move forward your photography journey, you'll realize that it's better to buy the best gear you can at the point where you need them.

That said, the right sequence for building a long-lens setup is:
    1. Define your heaviest lens and your longest shooting day
    2. Choose the tripod around that load and terrain
    3. Choose the head for the type of shooting such as tracking vs static
    4. Standardize on one mounting system across all components
    5. Add rigging for video or hybrid work if needed

Start from the ground up, literally. Every decision flows from the tripod.

The Tripod: Your Foundation

The tripod is the foundation of everything else. A tripod that flexes under load, creeps after locking, or vibrates in the wind destroys sharpness at long focal lengths, and no amount of technique compensates for it.

For long-lens work, anything 300mm and beyond, the key specifications are:

• Load capacity: your lens plus camera body plus accessories, with at least 30% headroom
• Leg rigidity: larger diameter legs flex less. For instance, the 42 Series with 42mm legs handles super-telephoto loads without compression
• Leg angle adjustability: wildlife and nature photographers frequently work on uneven ground, slopes, and near water, so independent leg angles are not optional
• Folded length vs extended height: it needs to travel easily and reach shooting height without a center column that introduces vibration

The TR424L Carbon Fiber Tripod hits all four. 125 lb load capacity, 77-inch maximum height, 26.3-inch folded length, and independent leg angles at 25°, 50°, and 80°. It is the right tripod for photographers running 400mm to 600mm glass in real field conditions.

Related post: Tripod Buying Guide: 32 Series vs 42 Series

The Head: Tracking vs Static

The head determines how you interact with the setup. There are two meaningful choices for long-lens work: ball head or gimbal head.

Ball Head: For static and semi-static subjects

Ball heads are versatile and compact. For perched birds, stationary mammals, landscape, and general use, a quality ball head with a large tension knob handles most telephoto work. The limitation is tracking. When a subject moves, and you need to reframe quickly, you are managing the weight of the lens at the same time.

That doesn't mean that ball heads aren't capable. There's just a workflow hurdle that you need to overcome for a smooth shooting experience.

Gimbal Head: For moving subjects at long focal lengths

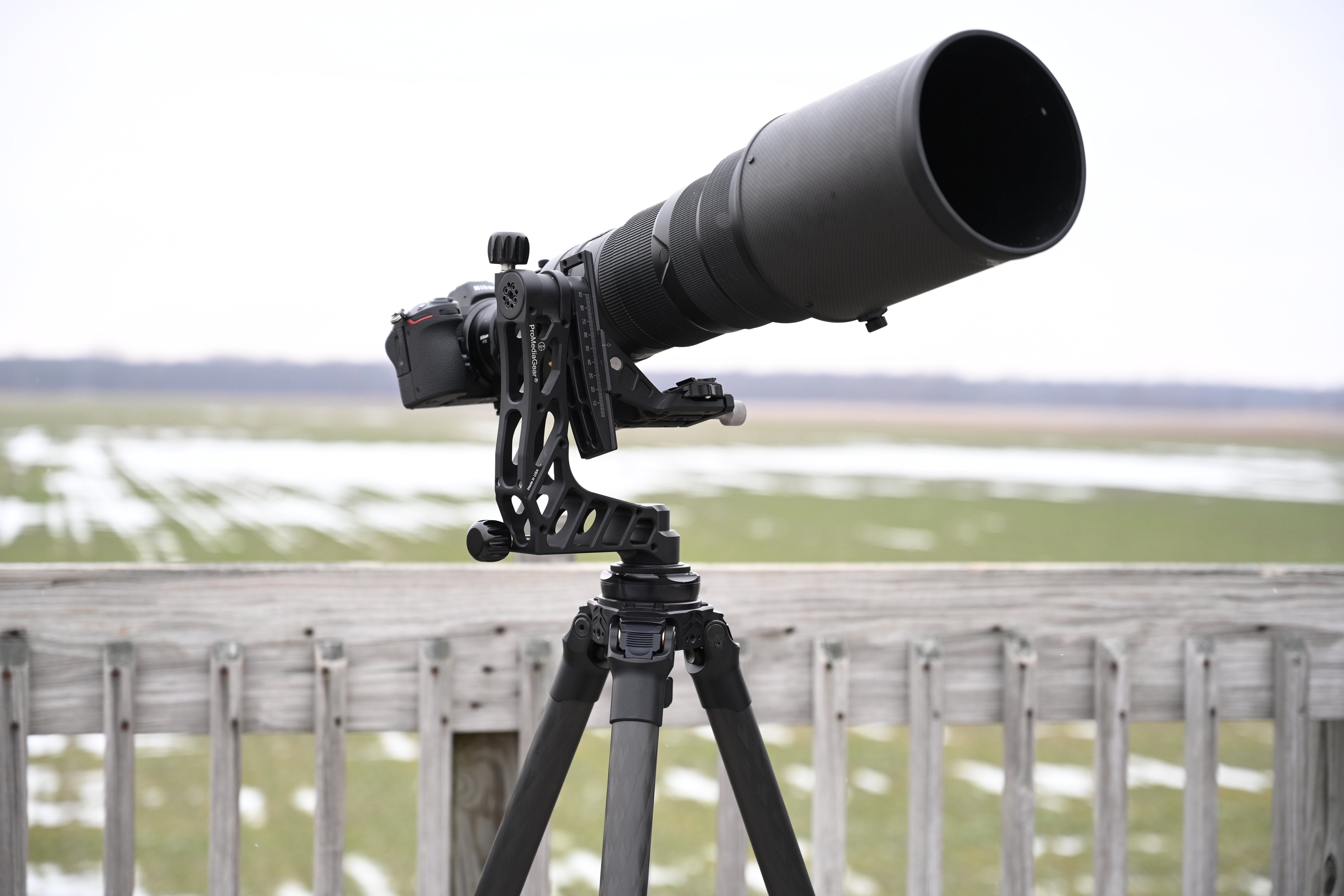

A gimbal head balances the lens at its center of gravity. Once balanced, the setup is nearly weightless to move. All you need to do is direct motion; the gimbal manages the load.

For birds in flight, running wildlife, and sports at a distance, this is the right tool.

The GKJr. Katana Pro is a compact dual-axis gimbal head with Arca-Swiss compatibility and cradle clamp for fast horizontal balance adjustment. It pairs directly with the TR424L and handles the heaviest telephoto setups in the PMG lineup.

Read Full Comparison: Gimbal Head vs Ball Head for Telephoto Photography

Quick Release Plates: The Connection Point

Quick release plates are the most overlooked component in a support system, and the most consequential when they go wrong.

A loose tolerance plate introduces slop at the connection point between your camera and every piece of support gear you own.

At long focal lengths, that slop is visible in your images as micro-movement, which is a softness that is hard to trace back to its source.

There are two plate types worth knowing to complete your long-lens setup:

Standard Arca-Swiss Plates: For Everyday Use

Machined to Arca-Swiss standard, these plates mount to your camera base and seat into any Arca-Swiss compatible clamp. PMG plates are machined from aircraft-grade aluminum with consistent tolerance, which means, the fit is repeatable across every mount, every time.

L-Brackets: For Fast Orientation Changes

An L-bracket replaces the standard plate and adds a vertical mounting surface to the camera body. Instead of repositioning the camera on the head when switching from landscape to portrait, you rotate at the clamp. Center of gravity stays consistent. Ports stay accessible.

Worth considering, the PLX3X is meant for multiple mirrorless and DSLR bodies. It's machined to precise dimensions so the fit is exact, with no wiggle room available.

Rigging: For Hybrid and Video Shooters

If you shoot stills only, the first three components cover the complete setup. If you run video, hybrid photo/video, or need to attach monitors, microphones, or handles to your camera rig, a modular rigging system is the fourth layer.

8Sinn's NATO rail ecosystem is the standard for this. The Safety NATO Rail is the attachment point for everything else such as top handles, side handles, monitor mounts, and accessories.

Every component uses the same quick release standard so the rig is reconfigurable without tools.

PMG now carries the full 8Sinn ecosystem alongside the core camera support lineup. Both brands ship from the same US facility and cover opposite ends of the same workflow.

PMG for stability and support, 8Sinn for rigging and control.

Putting Together a Sample Setup

A complete long-lens setup for wildlife, telephoto, and hybrid work built around PMG and 8Sinn:

All components use Arca-Swiss standard mounting. Every piece connects to every other piece. You build the system once and it stays consistent.

Frequently Asked Questions

Do I need all four components to get started?

No. Start with the tripod and head. Those two determine 90% of your system's performance. Add the L-bracket and rigging as your shooting style demands. The key is building on an Arca-Swiss standard from the beginning so everything you add is compatible.

What if I already own a ball head?

The GT2 Tomahawk is a gimbal attachment that mounts on top of your existing Arca-Swiss ball head. It adds balanced telephoto tracking without replacing the head you already own. It is a practical upgrade if you shoot telephoto occasionally but do not want to commit to a full gimbal head.

Does the 8Sinn rigging work with PMG tripods?

Yes. 8Sinn cages and NATO accessories mount to the camera body and work independently of the tripod. The PMG tripod, head, and plates handle the support system. 8Sinn handles the rigging on top. They cover different parts of the workflow and do not interfere with each other.

What is the Arca-Swiss standard?

Arca-Swiss is the universal mounting standard for camera support systems. A dovetail plate on the camera slots into a compatible clamp on the head. If every component in your system such as plates, L-brackets, heads, and clamps uses Arca-Swiss standard, they all work together interchangeably. PMG and 8Sinn both use Arca-Swiss throughout.
