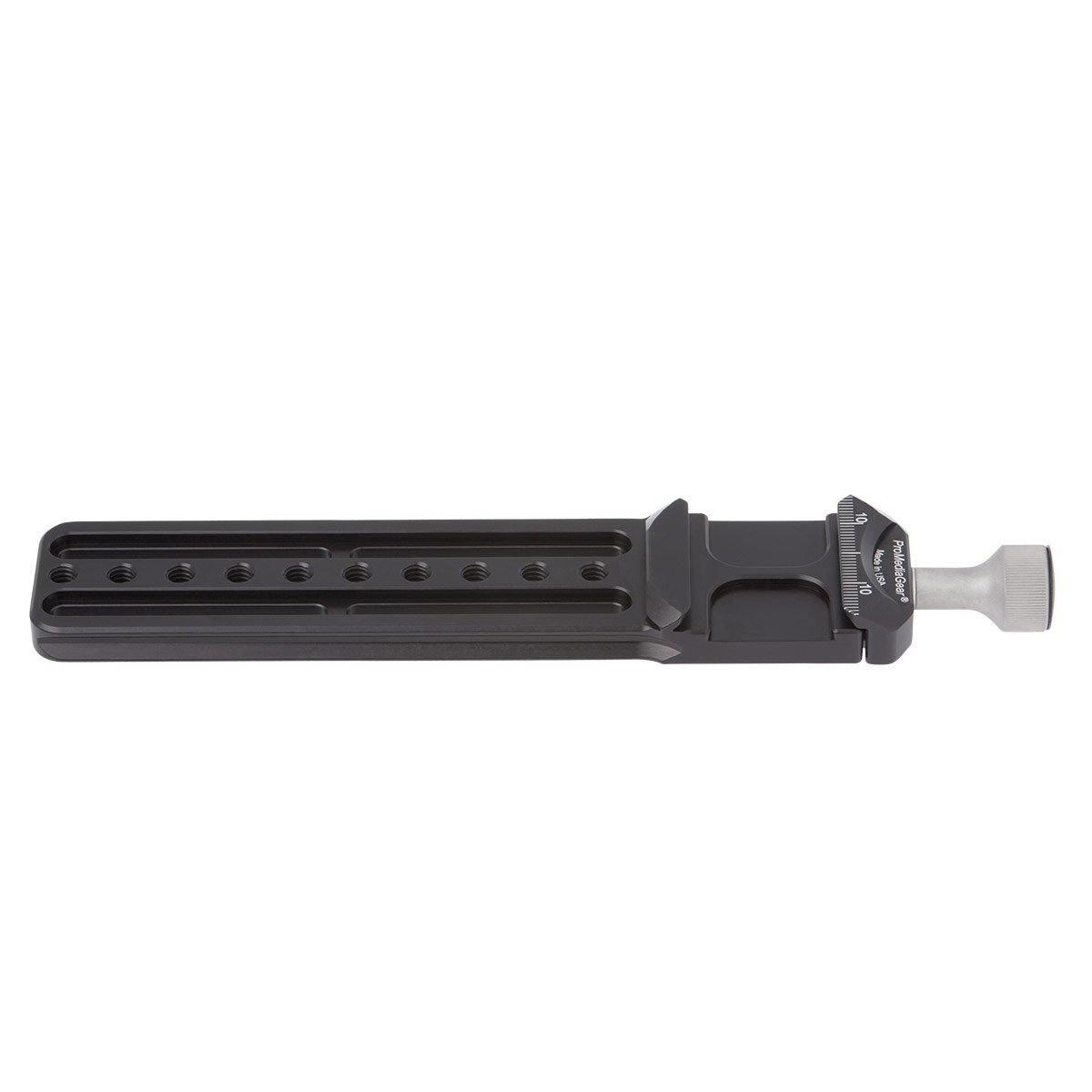

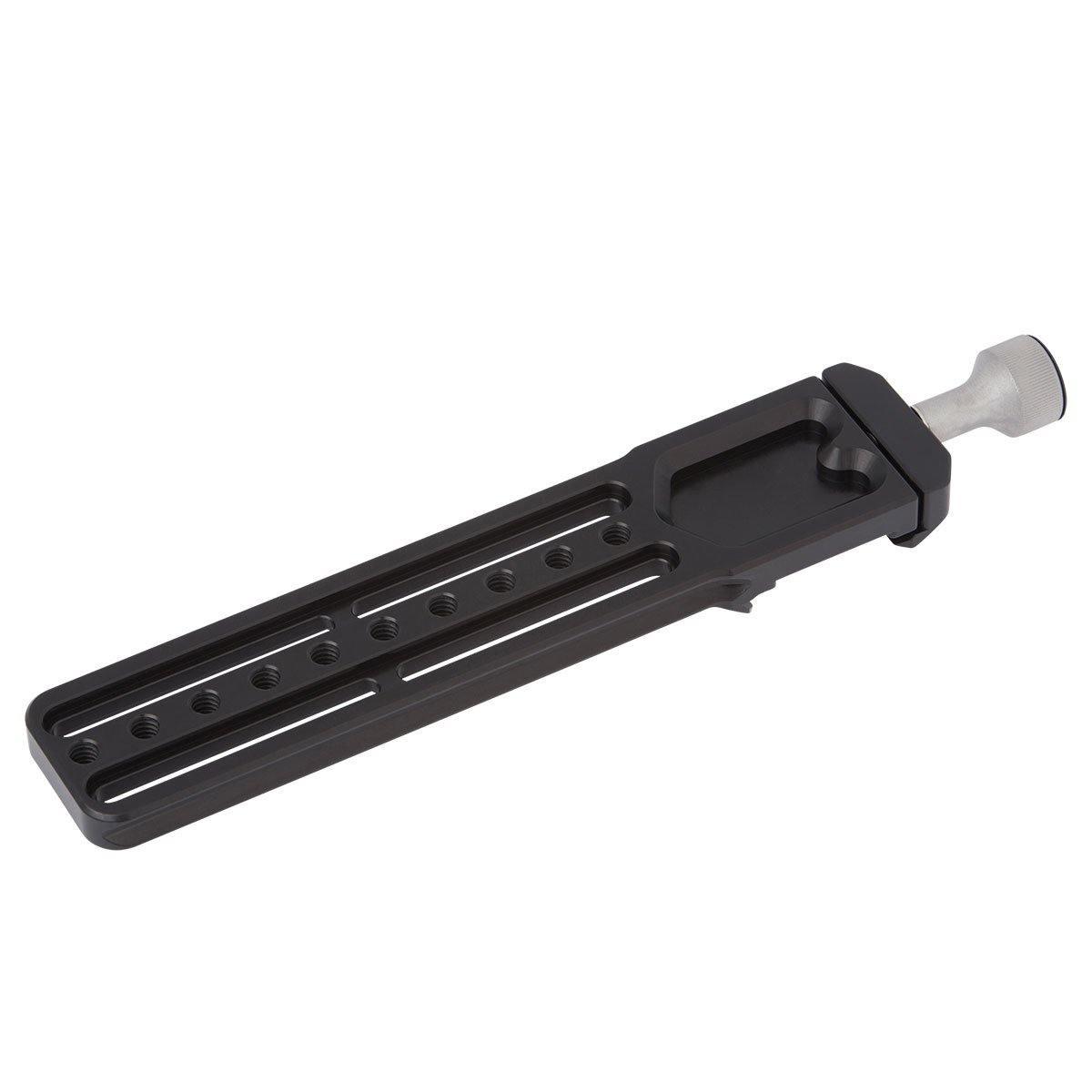

PXC2 8 Inch Arca-Swiss Type Nodal Rail with Integrated Clamp
$74.95 USD
All ProMediaGear camera plates are now QD standard. Click here to learn more!
Free shipping for orders $100 above
KEY FEATURES

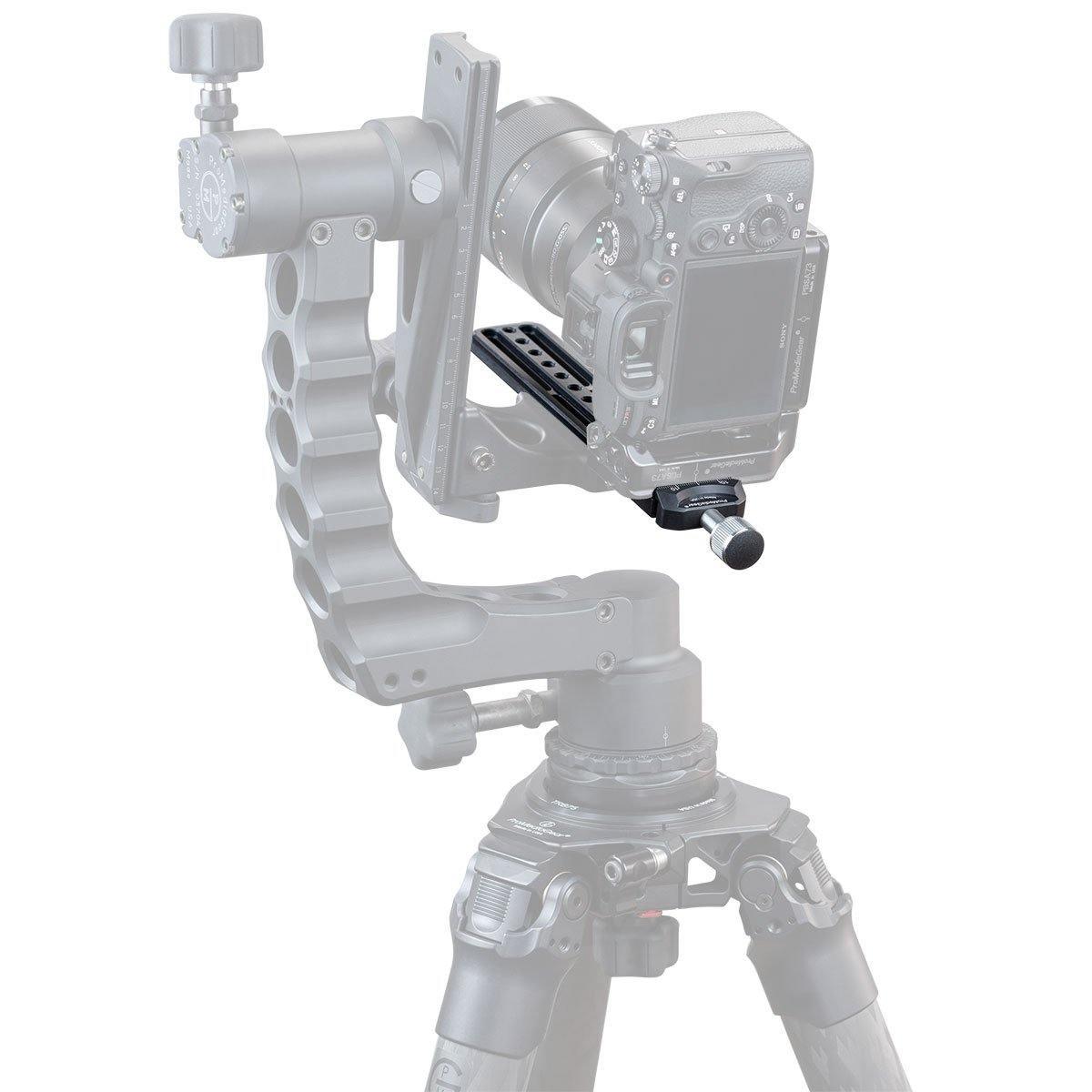

The ProMediaGear PXC2 Nodal Rail with clamp is compatible with Arca-Swiss type ball or gimbal heads.
It is 8-inches long and is designed to adjust to your Nikon, Canon, Sony, or any camera's position front to back. This enables you to position the nodal point of your lens over the center of rotation.

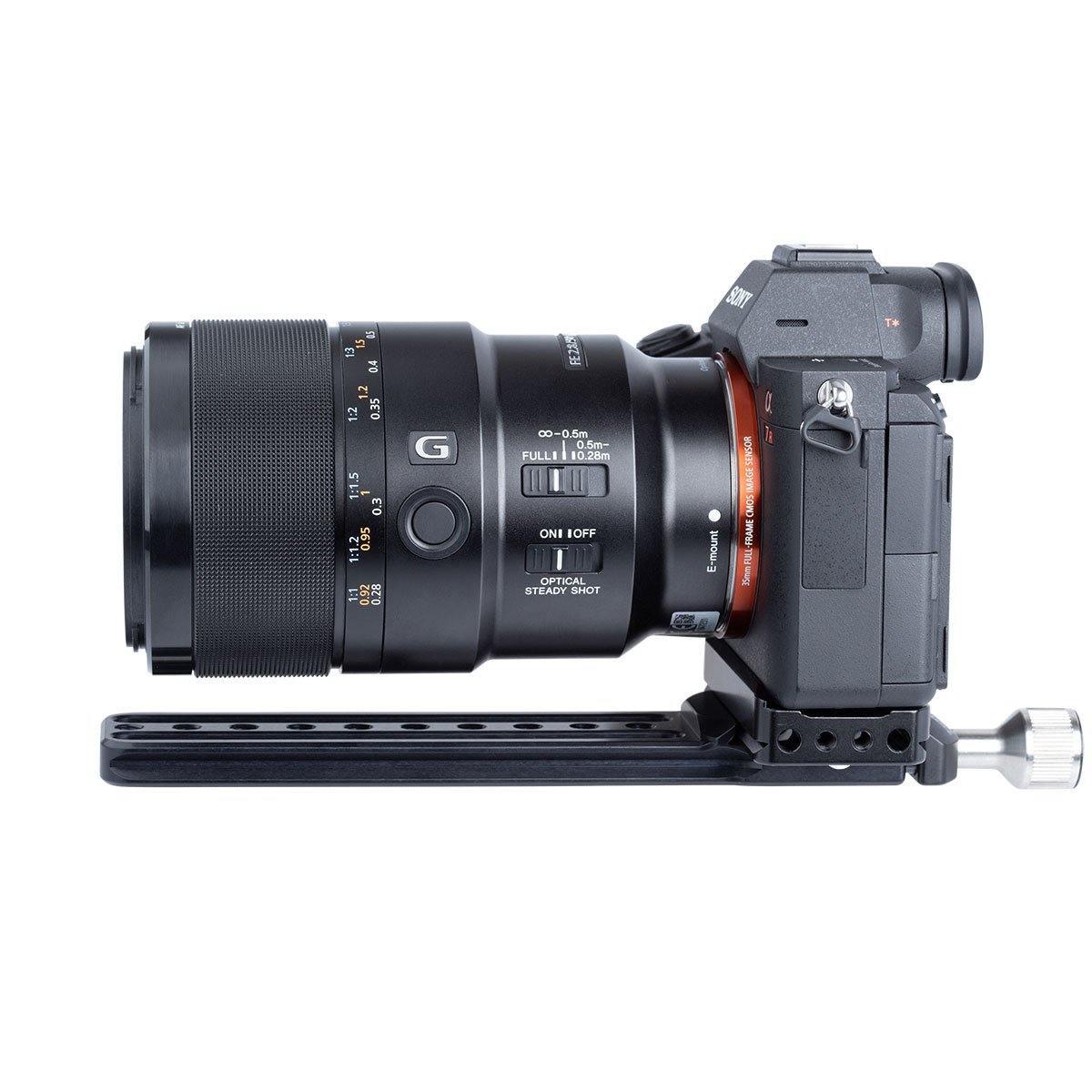

Moreover, this allows you to create better panoramas as you have a more precise center. You may also mount your camera on this nodal rail via a separate mounting plate.
The PXC2 8-inch Nodal Rail is made of T6061 aluminum. It is lightweight, durable and built to last. Proudly made in the USA!

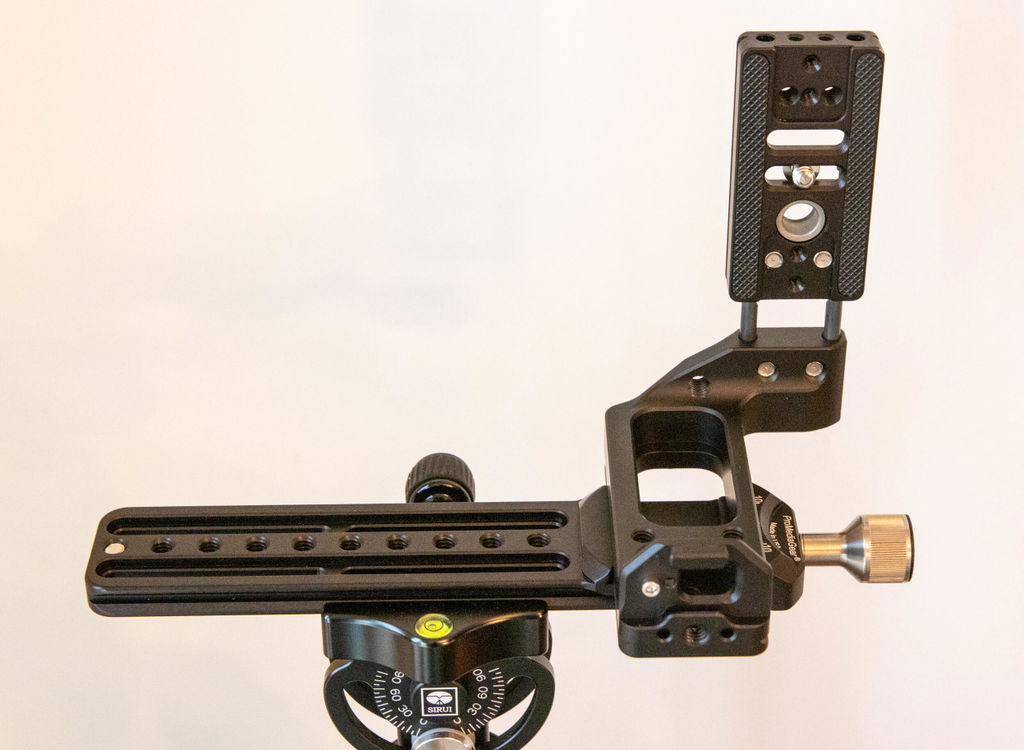

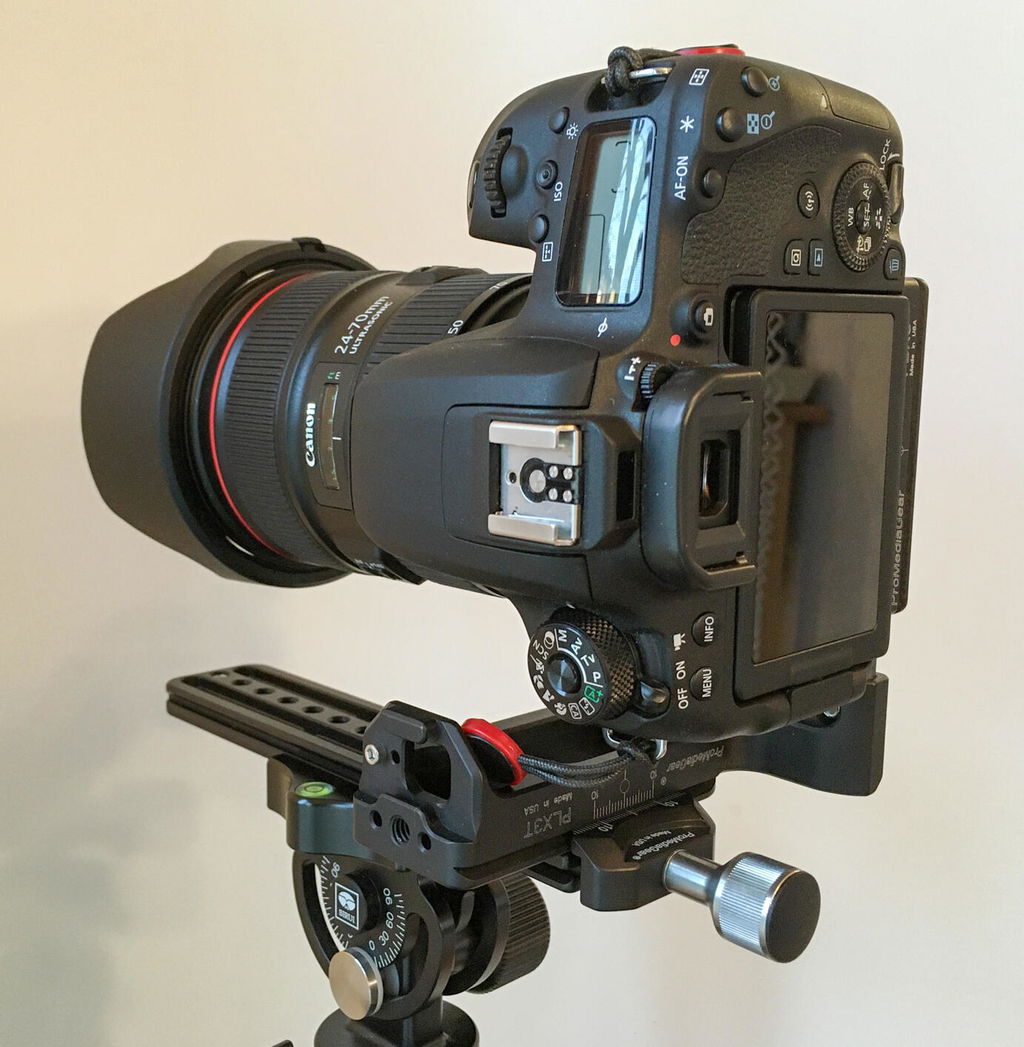

I got the 8 inch rail (PXC2) to use with the PMG L bracket (PLX3T) with panoramic shots with a pan/tilt head. I also plan to use it with the GT2 "Tomahawk" for mounting my camera to the GT2 with lenses that don't have a tripod foot. The rail is clearly high-quality construction, the clamp action is smooth, and the price is quite good compared to the competition. Definitely recommended. I have no problems with lens hood clearance at the wide end with a 24-70 f/2.8 in portrait orientation, but the hood does hit the rail in landscape orientation. Extending the connecting rails on the L bracket might help with that. Those with large wide-angle lenses should consider the 6 inch model.
I bought both the 8 and 6 inch rails as I was not sure which would work the best for me. I found that the 8 inch works best shooting landscape and the 6 inch better in portrait when using with my Katana Jr. gimbal head. This is due to me also using the PMG L brackets with my cameras. Due to the bracket being forward when using as portrait the 6 inch rail works better due to the forward offset. If I used the 8 I am sure I would catch part of it in the picture using my 15-35mm lens.
I bought this to use on a gimbal head, but it is also useful for macro and panoramic photography too. It is very well made and does those functions as intended, but.... I use it on my Nikon Z7 with an RRS one piece L-bracket and my Z 24-70 f2.8. My one gripe: the height of the clamp above the rail is not high enough to allow my lens hood to stay on the lens without rubbing. Mine rubs the rail when retracted to 24mm. The RRS bracket is the low profile one, so if it was a little thicker, then no issue. This is something worth checking before you buy it for your setup. If you set your camera, with the plate/bracket on it, flush on a flat surface and the lens hood does not touch that same surface, then you won't have a problem. If lens hood diameter is large enough so that it touches that surface, or extends below it, then it will rub the rail, provided the lens is also short enough (less than 5.5" from the front edge of your plate). I can't use this with the lens hood unless I buy a new L-Bracket with a thicker bottom plate, cut the nodal rail short by an inch, or figure something else out.
This fail was perfect for me. I needed to mount Binoculars and a laser rangefinder on one rail and this is the perfect setup. The price point is great and the quality is there. Fast shipping too.

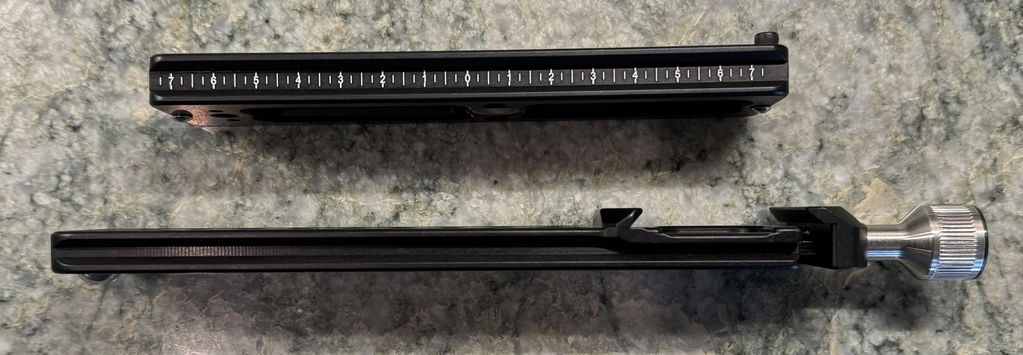

This is a very nice well built piece. I use this to help me reduce parallax when stitching pano's. To that end I do wish the rail had a scale on it so that I could easily adjust the plate for each focal length. My workaround was to put a piece of tape down the middle of the plate and write in all my focal length locations on it.
